{Quick Tip} Allow lookup field to search on multiple attributes and show attributes on parent entity form using Quick View

In a recent query presented across to me lookup field created for Category (custom entity) was being searched  not only based on the code

but also based on Description attribute of the Lookup.

It is a usual scenario for Category fields to have code and description attributes as well.

I tried to replicate the scenario in my Vanilla instance:

The sample values of categories are:

· A: Alpha

· B: Beta

· C: Captcha



clip_image002

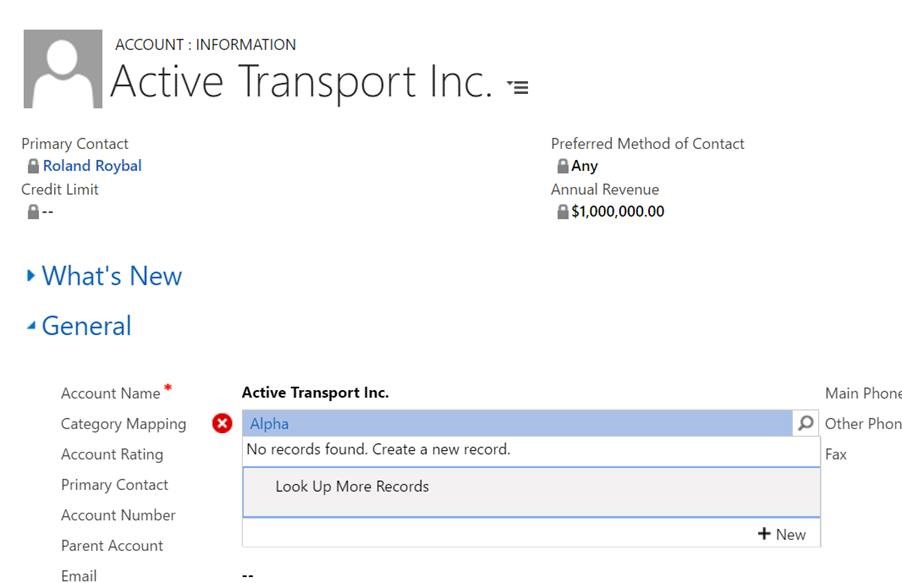

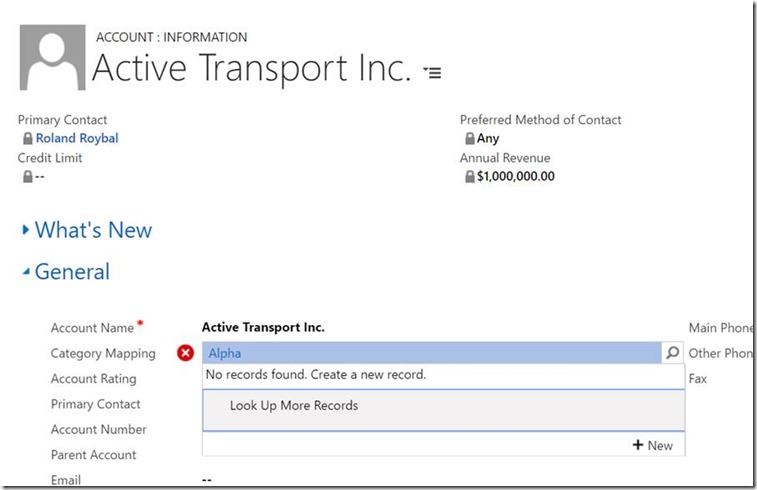

Replicating the scenario below on Account entity form, we can see that searching based on description has issues:

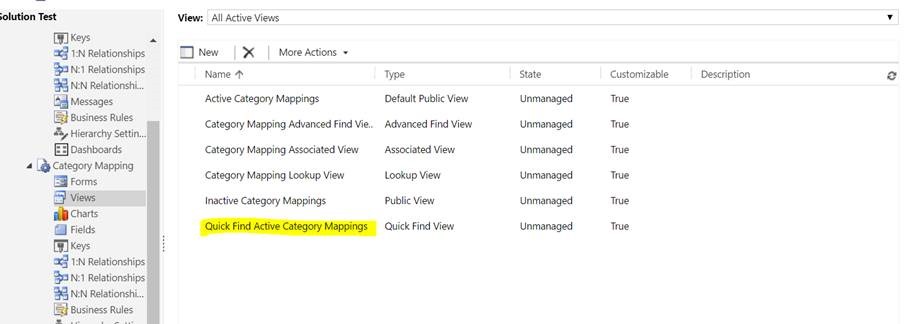

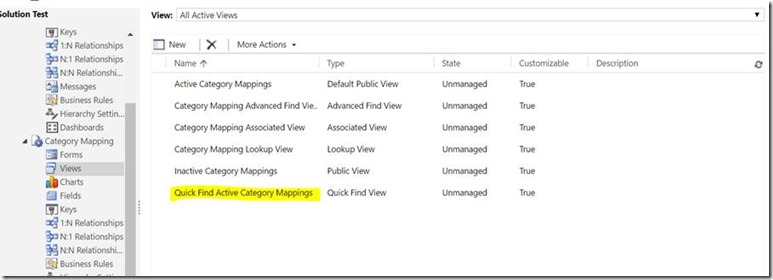

To fix the problem navigate to Lookup entity (in this case Category mapping), Views and select Quick Find view

for the entity (as highlighted below):

clip_image004

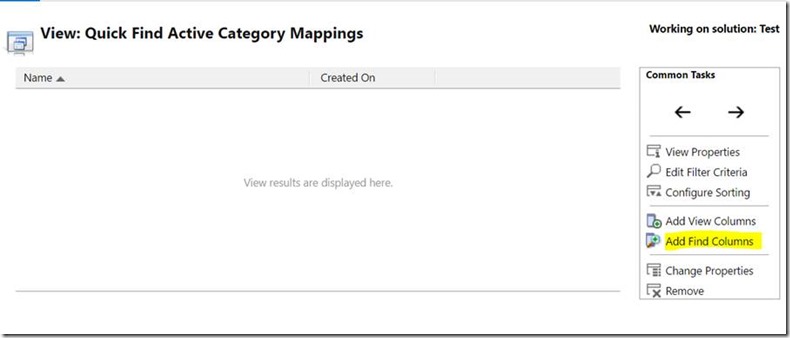

Next click Add Find columns:

clip_image006

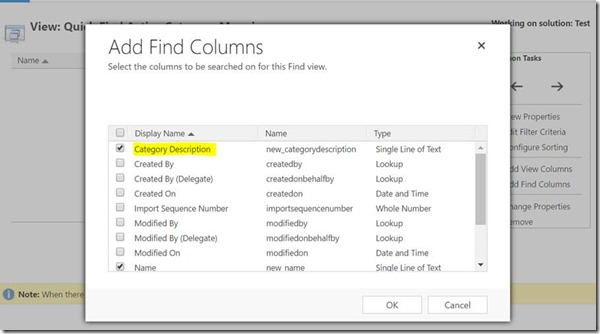

Add the relevant find column(selected Category description) as well:

clip_image008

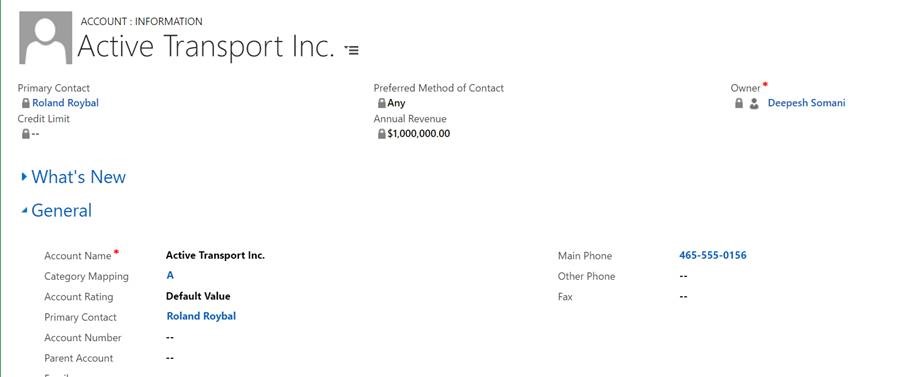

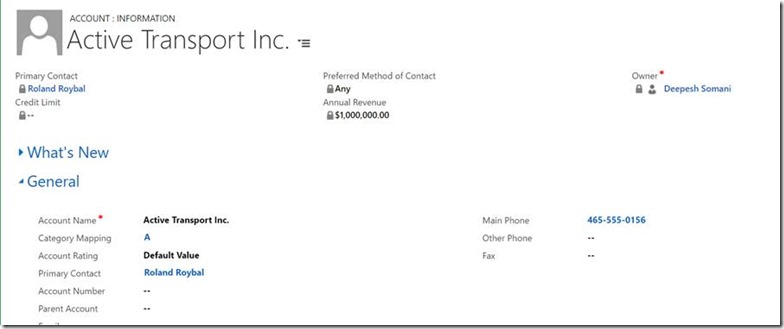

Save, Publish your customizations. Next time on the form, even if description is typed

Category code will be automatically pulled:

clip_image010

Let’s go a step ahead in improving the functionality. Now say once the Category is selected, user wishes to also see the

Category description along with the code on the form.

This can be achieved by Quick View form.

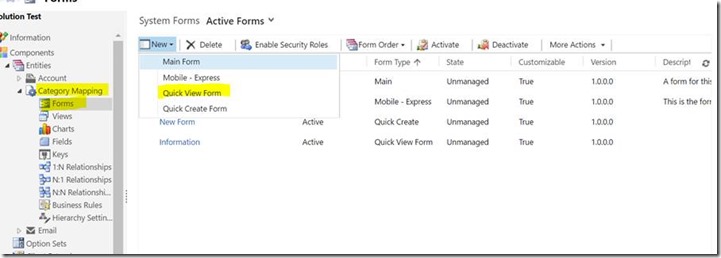

Navigate to Entity customizations, Category Mapping entity in this example -> Forms and Click New Quick View Form:

clip_image012

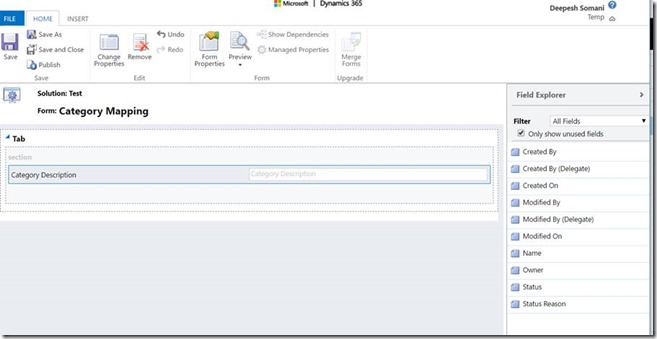

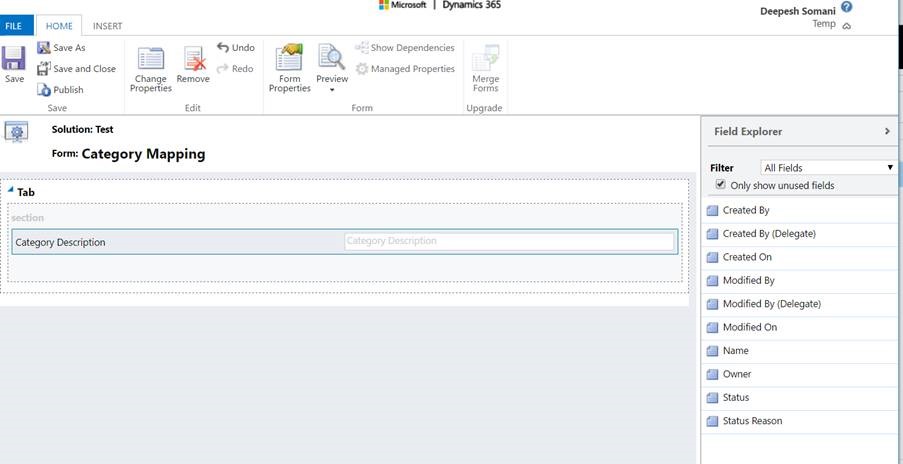

Next add Category Description on the form and publish:

clip_image014

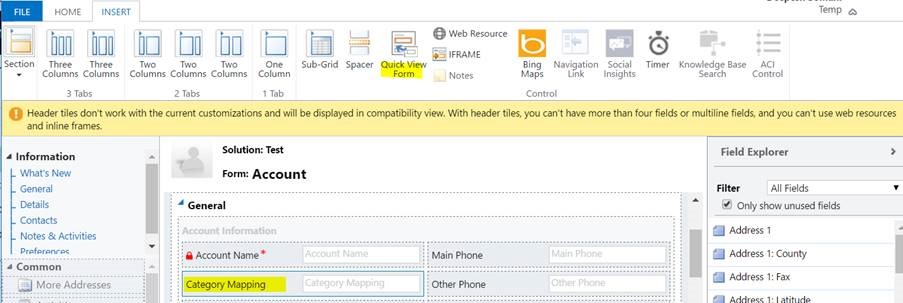

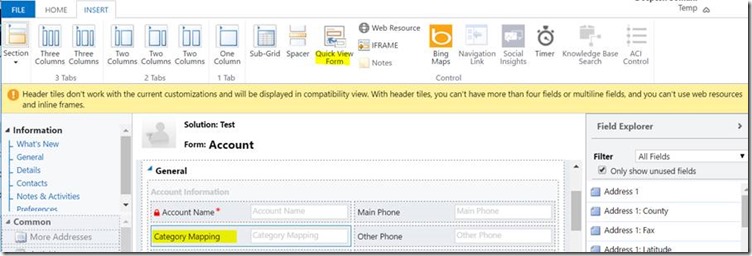

After Publish, Navigate to Account entity form for this example and Select Quick View form on the Insert tab:

clip_image016

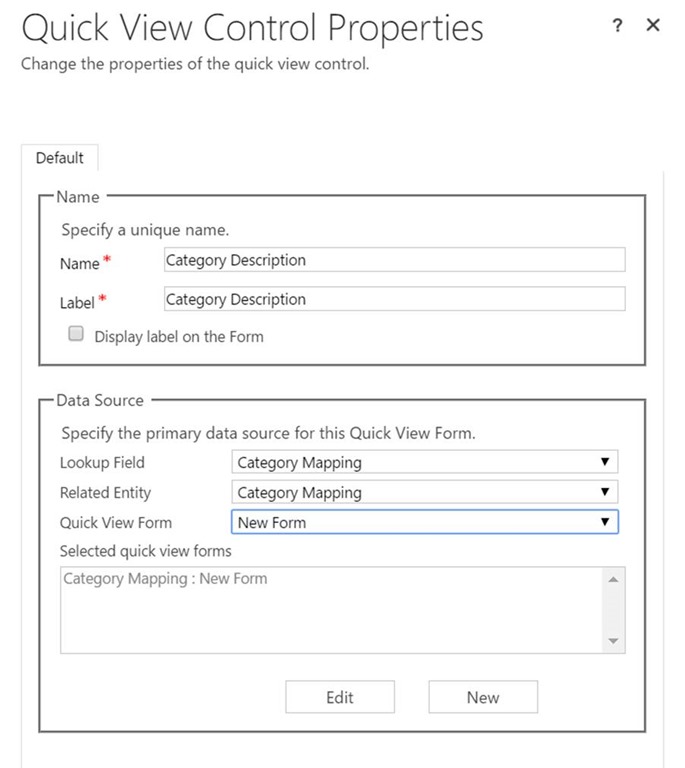

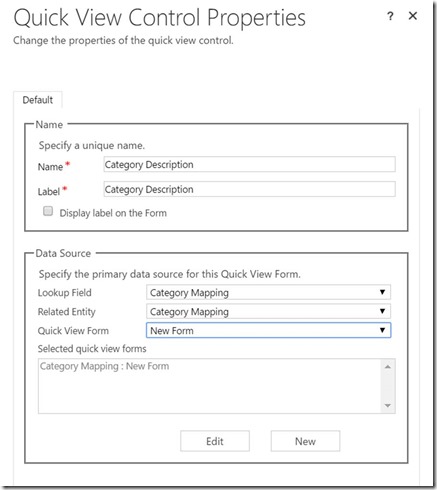

Pick the Category Mapping Quick View form created earlier and click Ok:

clip_image018

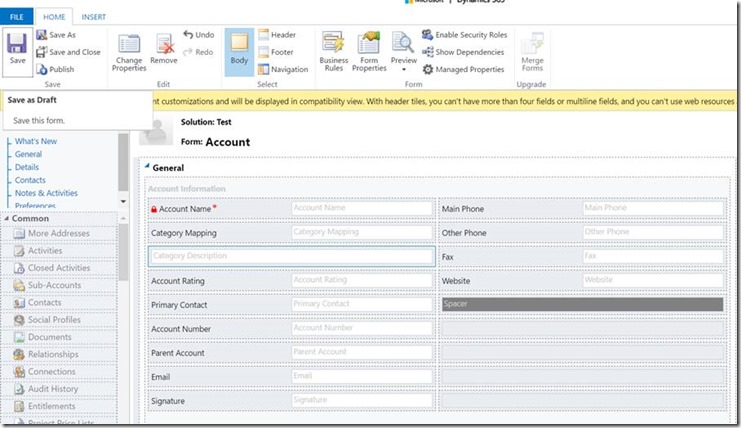

Form should now be appearing like this, Click Save and Publish:

clip_image020

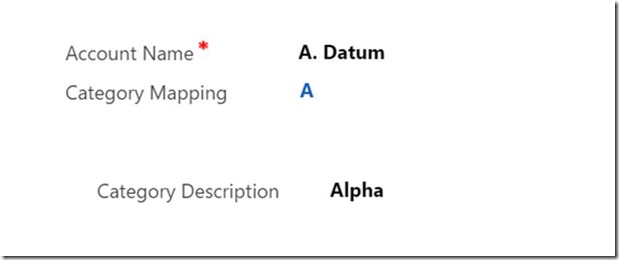

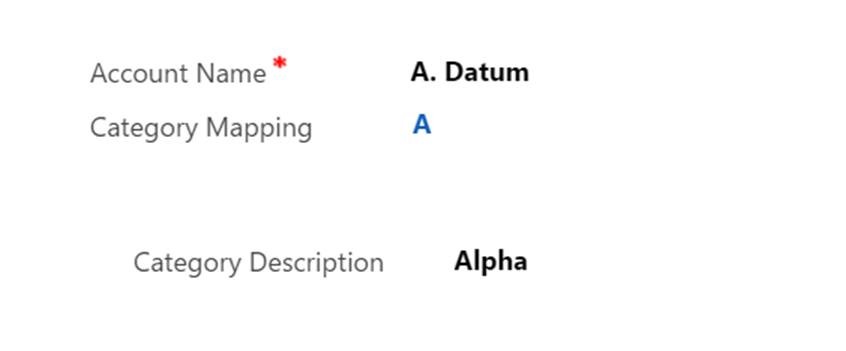

Now, whenever user types in either the category code or description both will be visible to the user on the form:

clip_image022

Please note that the values for Category Description are just shown on the form and not actually brought over to the

Account entity in this case.

Hope it helps and Happy CRMing!
