{Power 2022} How to add custom filter under “Field Service Schedule Board”?

Business Requirement: Add a Custom filter for a table named “Language” on Field service Schedule board.

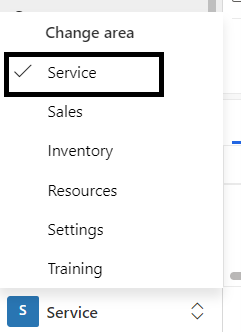

Open your “Field Service” Application, make sure you are at the “Service” area (You may select the respective area from bottom left corner of the screen)

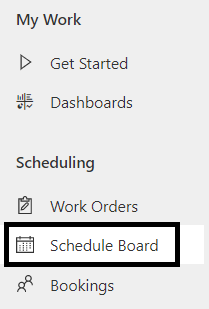

  • Select “Schedule Board” from the site map

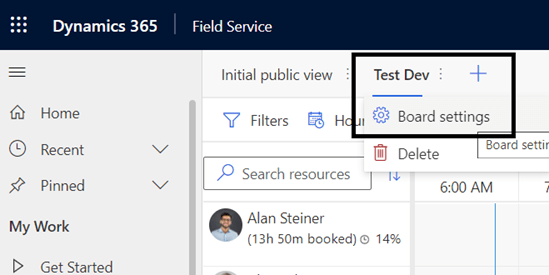

  • Select the board in which you want to add a filter and then click on “Board Settings

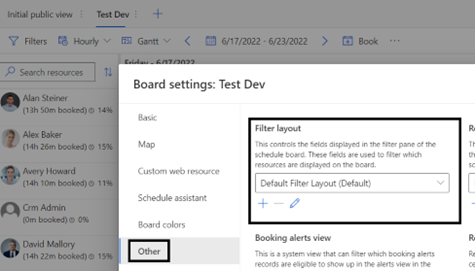

  • Select “Other” and then edit “Filter Layout
  • Now, here we are adding “Language” entity filter (This is a custom entity I created). Add the following code under filter layout window:

<control type=”combo” source=”fetchxml” key=”Languages” unspecified-key=”UnspecifiedChildTerritory” label-id=”Language” entity=”test_language” multi=”true”>


            <!– Table –>

            <entity name=” test_language “>

               <!– Filter By –>

               <filter type=”and”>

                  <condition attribute=”statecode” operator=”eq” value=”0″ />

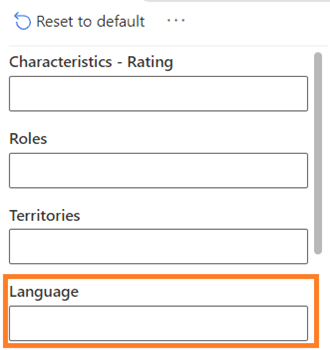

  • Here “Language” entity filter which we were trying to add is added 😊

Hope it helps!

Power 365ing as usual!
