{Guide} Step by Step: Install Email router for Dynamics CRM 2013

Recently did a fresh CRM 2013 deployment and documented Email router installations steps for reference:

· Download Email router for CRM 2013 from following link:

http://www.microsoft.com/en-us/download/confirmation.aspx?id=40342

· Click Installer and following extractor will be launched:

clip_image001

· Pick a folder to extract and then start extracting, next screen will be as below:

clip_image002

It is recommended that selected option for getting updated is kept. Click Next.

· Setup will check and let you know if update is needed:

clip_image003

Click Next.

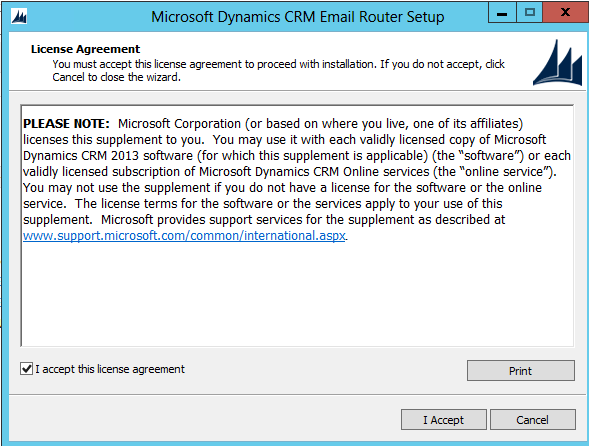

· Accept the License agreement checkbox and click I Accept:

clip_image004

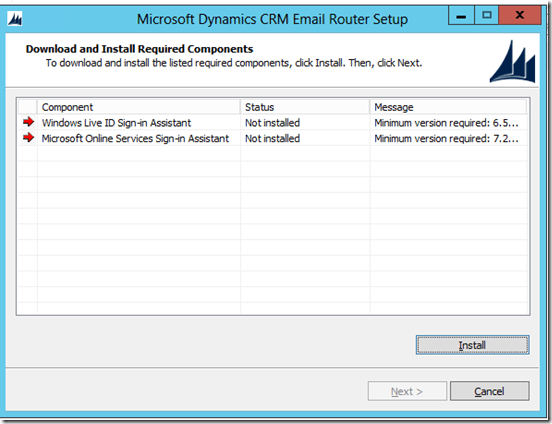

· Setup will point for missing components, if any, Please Install them by clicking Install button:

clip_image005

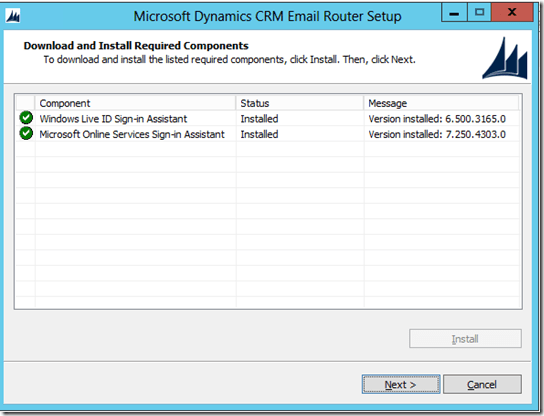

· Once completed with installation, Click next on screen as below:

clip_image006

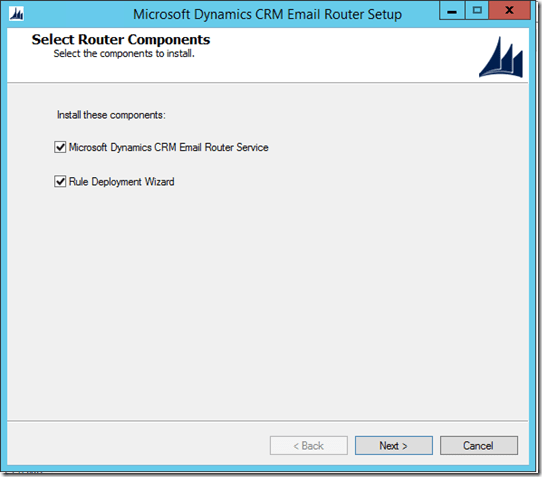

· Select components to install(Click checkbox for installation):

clip_image007

Click Next.

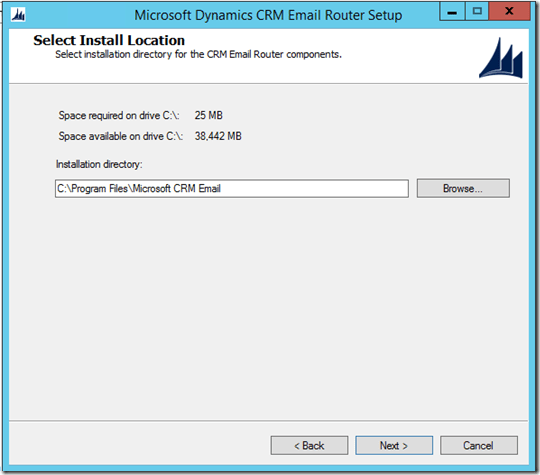

· Pick the installation drive and click Next:

clip_image008

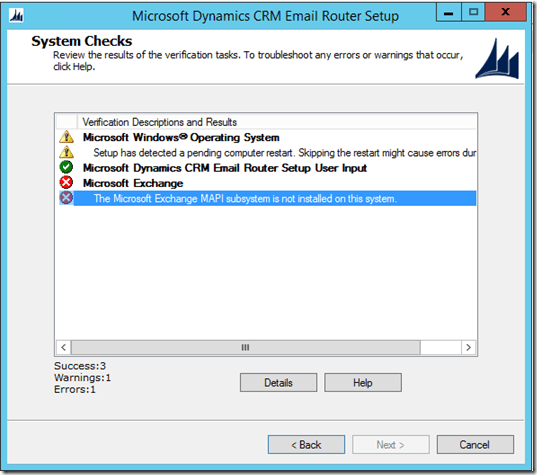

· At this step, You might encounter this error:

clip_image009

When you try to install Microsoft Dynamics CRM E-mail Router, you receive the following error message:

The Microsoft Exchange MAPI subsystem is not installed on this system.

Refer to the KB article link to resolve this issue: http://support.microsoft.com/kb/951401

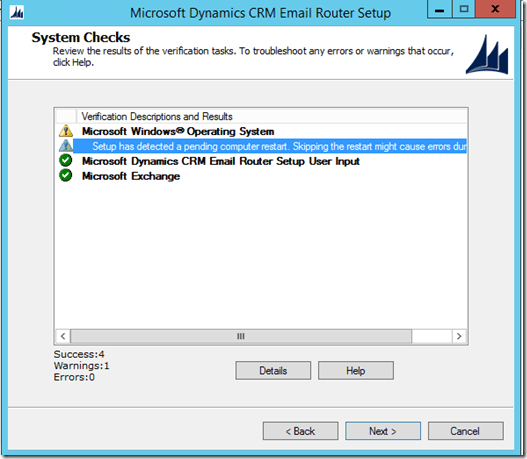

· Once installed with the required dll, continue as below:

clip_image010

Click Next.

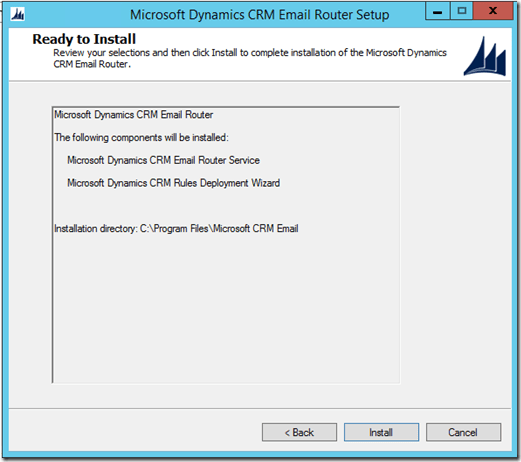

· Click on Install:

clip_image011

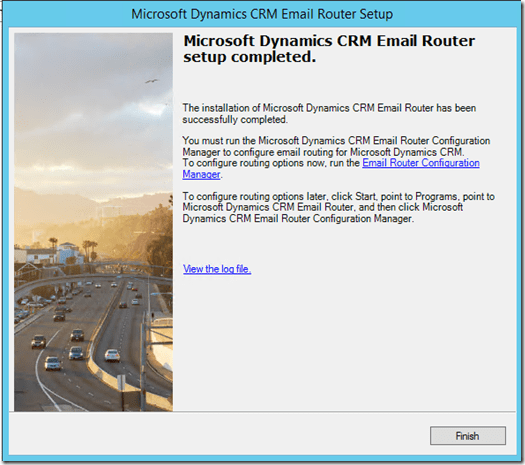

· Email router setup for Dynamics CRM 2013 is complete. Press Finish:

clip_image012

Hope it helps!
